Length over all
10,30 m |
Length hull
9,90 m |
Length water line
8,50 m |
Beam
3,35 m |
Standard draught
appx. 1,50 m |
Option appx.
1,80 m |
Displacement
appx. 3.750 kg |
Ballast appx.
1.060 kg |
Engine
Volvo Penta MD 2020 14 kW/19 hp |
Water tank
appx. 150 L |
Fuel tank
appx. 90 L |
Sail areas |
Furling mainsail
appx. 21,00 m² |
Battened mainsail
appx. 24,20 m² |
Genoa
appx. 24,60 m² |
Height of mast
above waterline
appx. 13,27 m
|
|

|

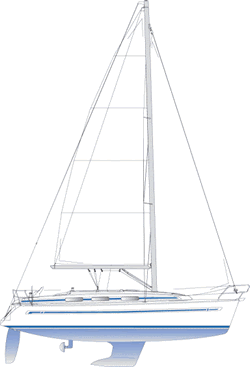

side view |
|
deck view |
|
2 cabins |
|
Deck
- Side deck and coach roof with anti-slide structure;
- Teak on seat thwarts and cockpit floor;
- Pulpit;
- Pushpit;
- Guardrail;
- Bow fitting with anchor roller;
- 4 Cleats;
- 2 Self-tailing working winches;
- 2 Self-tailing genoa winches, two-speed;
- 1 Winch handle;
- Tensioners and lines led to the cockpit;
- Self-draining anchor locker;
- 1 Locker seat in cockpit;
- Self-draining gas cylinder container;
- Cockpit shower;
- Boarding ladder;
- Deck vent;
- Electric bilge pump;
- Manual bilge pump;
- Navigation lights;
- Deck light;
- Sail;
- Mainsail, coordinated with conventional rig;
- Genoa, coordinated with standard foresail reefing gear;
- Rigging;
- Conventional rig;
- Roller reefing gear for foresail;
- Ballast;
- Cast iron keel in modern lateral profile;
- Draught 1.50 or 1.80 m / lead (option);
- Rudder;
- Steering pedestal;
- Streamlined rudder with fore balance;
- Rudder stock with self-adjusting pendulum bearings;
- Emergency tiller;
- Steering wheel with leather cover;
| Electrical system
- Boat power supply switch board;
- Automatic fuses with control lamps;
- Engine circuit / Boat circuit;
- 1 x 55 Ah / 1 x 140 Ah;
- Voltmeter;
Interior
- 2 cabins with 4 berths plus saloon;
- Saloon with comfortable settee;
- Luxuriously styled saloon table;
- Sideboards with stowage space and lockers;
- Chart table with large compartment for nautical charts and navigation instruments;
- Galley: cooker with oven, half-cardanic;
- Insulated cooling box;
- Sink of stainless steel
- Stowage for dishes, pots and waste bucket;
- 3 Fire-extinguishers;
- Marine head with easy-care synthetic surfaces;
- Pump toilet;
- 2 hatches to open;
- 6 side windows to open;
- Fresh water supply
- Tank with appx. 150 L content;
- Water level indicator;
- Electric pressure water pump with pump filter;
Instruments
- Tridata (log, speedometer and echo sounder);
- Compass;
- Motorization;
- Volvo-Penta MD 2020, 14 kW/19 hp with sail drive;
- Dual circuit cooling;
- Operating hours counter;
- Rev-counter;
- Diesel tank with appx. 90 l content
- Fuel level indicator.
|
