| Length over all
11,40 m |
Length hull
10,96 m |
Length water line
9,40 m |
| Beam
3,60 m |
Standard draught
appx. I 1,55 m |
Option
appx. II 1,95 m |
Displacement
appx. 4.700 kg |
Ballast
appx. 1.340 kg |
Engine
Volvo Penta MD 2020 14 kW/ 19 PS/hp |
Water tank
2x appx. 150 L |
Fuel tank
appx. 90 L |
Sail areas |
Furling mainsail
appx. 27,00 m2 |
Battened mainsail
appx. 31,00 m2 |
Genoa
appx. 36,00 m2 |
| Height of mast above
waterline
appx. 15,40 m |
|
|

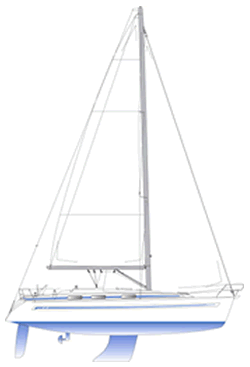

side
view |
|
deck
view |
|
2
cabins |
|
|
Deck
- Side deck and coach roof with anti-slide structure;
- Teak on seat thwarts and cockpit floor;
- Pulpit;
- Pushpit;
- Guardrail;
- Bow fitting with anchor roller;
- 4 Cleats;
- 2 Self-tailing working winches;
- 2 Self-tailing genoa winches, two-speed;
- 2 Winch handles;
- Tensioners and lines led to the cockpit;
- Self-draining anchor locker;
- 2 Locker seats in cockpit;
- Self-draining gas cylinder container;
- Cockpit shower;
- Boarding ladder;
- Deck vent;
- Electric bilge pump;
- Manual bilge pump;
- Navigation lights;
- Deck light;
Sail
- Mainsail, coordinated with conventional rig;
- Genoa, coordinated with standard foresail reefing gear;
Rigging
- Conventional rig;
- Roller reefing gear for foresail;
Ballast
- Cast iron keel in modern lateral profile;
- Draught 1.55 or 1.95 m/lead (option);
Rudder
- Steering pedestal;
- Streamlined rudder with forebalance;
- Rudder stock with self-adjusting pendulum bearings;
- Emergency tiller;
- Steering wheel with leather cover;
| Electical System
- Boat's power supply switch board;
- Automatic fuses with control lamps;
- Engine circuit / Boat circuit 1 x 55 Ah / 1 x 140 Ah;
- Voltmeter;
Interior
- 2 cabins with 4 berths plus saloon;
- or 3 cabins with 6 berths plus saloon;
- Saloon with comfortable settee;
- Luxuriously styled saloon table
- Sideboards with stowage space and lockers;
- Chart table with large compartment for nautical charts and navigation instruments;
- Chart table seat with stowage for tools;
- Book shelf;
- Galley: cooker with oven, half-cardanic;
- Insulated cooling box;
- Sink of stainless steel;
- Stowage for dishes, pots and waste bucket;
- 3 Fire-extinguishers;
- Marine head with easy-care synthetic surfaces;
- Pump toilet;
- 4 hatches to open;
- 6 side windows to open;
Fresh water supply
- Tank with 2x appx. 150 l content;
- Water level indicator;
- Electric pressure water pump with pump filter;
Instruments
- Tridata (log, speedometer and echo sounder);
- Compass;
Motorization
- Volvo-Penta MD 2020, 14 kW/19 hp with sail drive;
- Dual circuit cooling;
- Engine hours counter;
- Rev-counter;
- Diesel tank with appx. 90 L content;
- Fuel level indicator.
|
