Length
over all
12,55 m |
Length
water line
11,05 m |
Beam
3,99 m |
Option
appx. II 2,10 m |
Displacement
appx. 8.300 kg |
Ballast
appx. 2.550 kg |
Engine
Volvo Penta D2-55 41 kW / 55 PS |
Water
tank
appx. 300 L |
Fuel
tank
appx. 150 L |
Sail areas |
Furling
mainsail
appx. 35,25 m2 |
Battened
mainsail
appx. 41,30 m2 |
Genoa
appx.
47,20 m2 |
Height of mast above waterline
appx. 17,75 m |
|

|

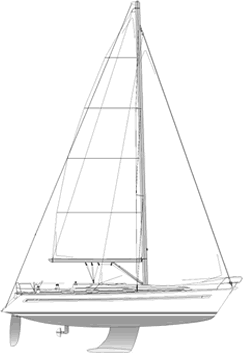

side
view |
|
deck
view |
|
2
cabins |
|
3
cabins |
|
Deck
- Side deck and coach roof with anti-slide structure;
- Teak on seat thwarts and cockpit floor;
- Pulpit;
- Pushpit;
- Guardrail;
- Bow fitting with anchor roller;
- 4 Cleats (aluminium);
- 2 Spring cleats, midships (aluminium);
- 2 Self-tailing working winches, two-speed;
- 2 Self-tailing genoa winches, two-speed;
- 2 Winch handles;
- Tensioners and lines led to the cockpit;
- Self-draining anchor locker;
- 2 Locker seats in cockpit;
- Self-draining gas cylinder container;
- Cockpit shower;
- Boarding ladder;
- Deck vent;
- Electric bilge pump;
- Manual bilge pump;
- Navigation lights;
- Deck light;
- Electric windlass;
Sail
- Mainsail, coordinated with conventional rig;
- Genoa, coordinated with standard foresail reefing gear;
Rigging
- Conventional rig;
- Roller reefing gear for foresail;
Ballast
- Cast iron keel in modern lateral profile Draught 1.70 or 2.10 m (option);
Rudder
- Steering pedestal;
- Streamlined rudder with forebalance;
- Rudder stock with self-adjusting pendulum bearings;
- Emergency tiller;
- Steering wheel with leather cover;
- Pedestal for instruments;
|
Interior
- 3 Cabins with 6 berths plus saloon or 2 cabins with 4 berths;
- Saloon with comfortable settee;
- Luxuriously styled saloon table;
- Sideboards with stowage space and lockers;
- Chart table with large compartment for nautical charts and navigation instruments;
- Chart table seat with stowage for tools;
Electrical system
- Boat's power supply switch board;
- Automatic fuses with control lamps;
- Engine circuit / Boat circuit 1 x 55 Ah / 1 x 140 Ah;
- Shore supply 230 V with facility for battery charger;
- 230 V-socket at switch board, galley and marine head, aft;
- 12 V-socket at switch board;
- Voltmeter Book shelf;
- Galley: cooker with oven, half-cardanic;
- Insulated cooling box, elect. refrigeration unit 12 V (+Refrigerator/2-Cab.);
- Sinks of stainless steel;
- Stowage for dishes, pots and waste bucket;
- 3 Fire-extinguishers;
- Marine head with easy-care synthetic surfaces;
- Pump toilet;
- holding tank, aft (1x) (disposal via seacock);
- 8 hatches to open;
- 6 side windows to open;
Fresh water supply
- Tank with appx. 300 L content;
- Water level indicator;
- Electric pressure water pump with pump filter;
Instruments
- Tridata (log, speedometer and echo sounder);
- Compass;
Motorization
- Volvo-Penta D 2-55 ,41 kW /55 hp with Sail-Drive;
- Dual circuit cooling;
- Engine hours counter;
- Rev-counter;
- Diesel tank with appx. 150 L content;
- Fuel level indicator;
- Fuel filter;
- Seawater filter.
|
